850R ABS pump (wanted or advise)

foxroyale

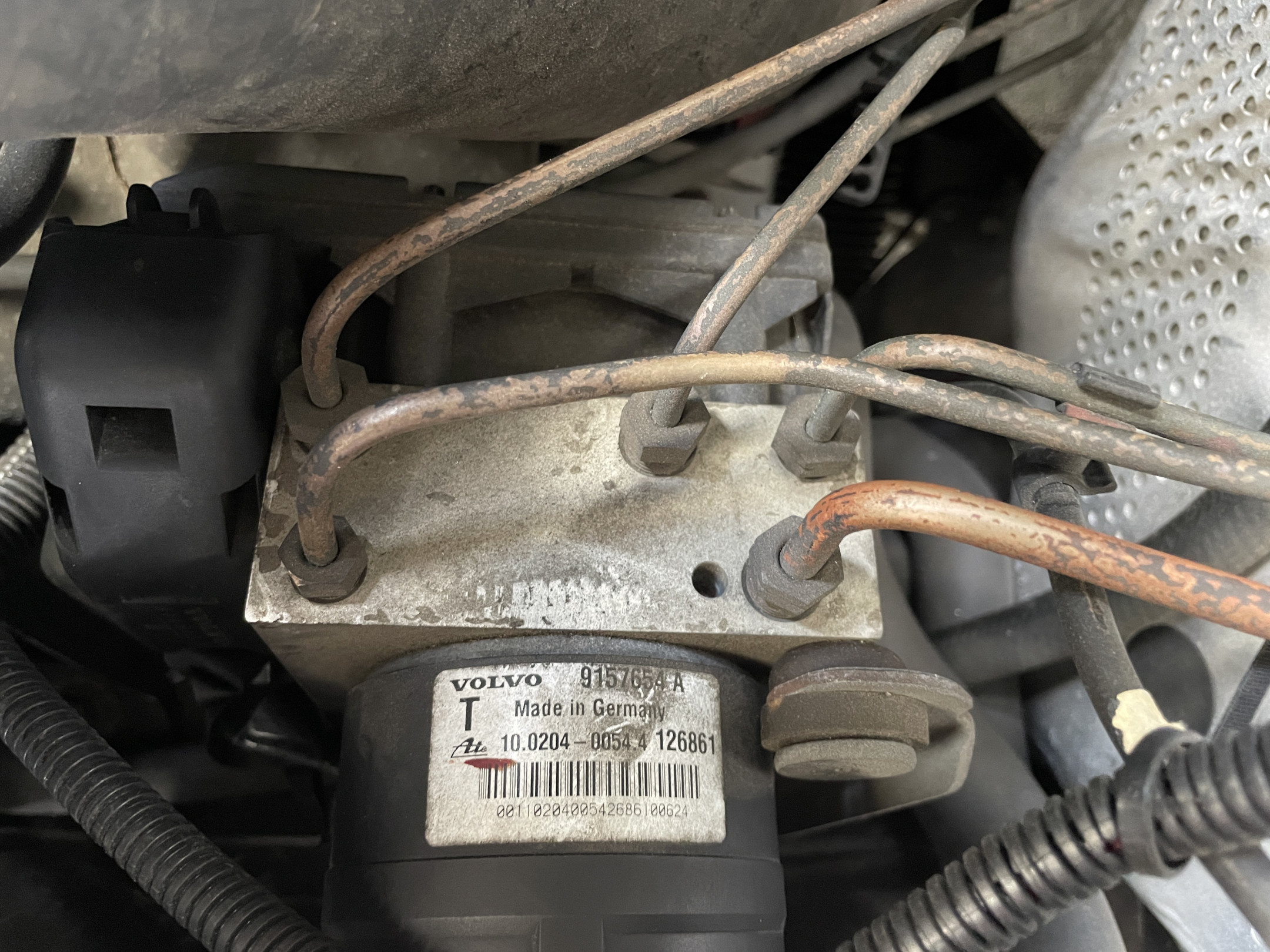

To whomever might be able to help or advise—I’m in need of a functioning ABS pump for my 1996 850R wagon. Part number is: 9157654 A

Are there any other models that would work that have both ABS and TRACS? Or does anyone have one laying around… thanks in advance

foxroyale

Image description

^ this guy

ramrod

What seems to be the issue with it?

foxroyale

ramrod ABS and TRACS lights have come on intermittently for a little while now, but last service at Berry Motor Group I was informed it is faulty/broken and will need to be replaced. Unsure of the actual fault, but I don’t know enough about the unit, so in search of a replacement part. Proving tricky.

ramrod

Would you be willing to take off the electrical part of the module and send it to me so I can see if it can be repaired?

foxroyale

ramrod I’ll have a look, but probably wouldn’t know where to start tbh. I was told it was the actual pump, not the module.

ramrod

I would start with the module.

It’s attached to the housing with four screws. Remove them, disconnect the electrical connector and it will come out

Jamest5r_

It'll be the module, Ramrod is correct it's the connections on the board, very common and can be fixed
